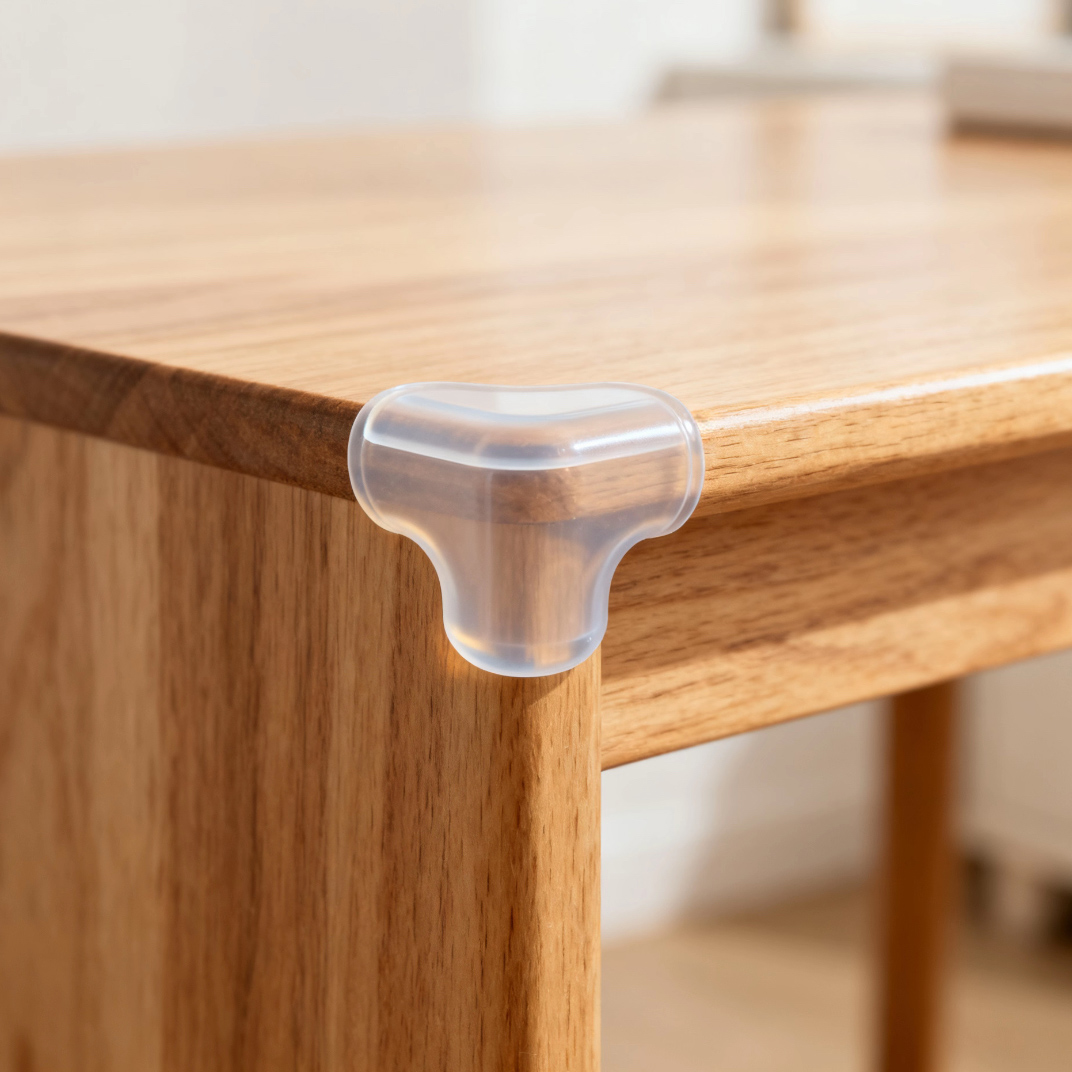

What Wall Thickness Works for a Molded Silicone Protector?

Designing a molded Silicone Protective Cover presents a fundamental engineering conflict. You must balance robust physical protection with manufacturing feasibility, tool life, and device ergonomics. Arbitrary wall thickness specifications inevitably lead to high defect rates on the production floor. These defects manifest as sink marks, short shots, and internal voiding, which drive up scrap rates and delay project timelines. Poorly planned dimensions also increase tooling costs and cause field failures like tearing, poor fit, or premature wear on the final device.

Engineers need a systematic approach to specifying wall thickness. Evaluating factors like Shore A hardness, application environment, material volume calculations, and molding methods is non-negotiable. Whether you use compression or injection molding, these variables dictate the success of your production-ready CAD designs. Mastering these parameters ensures your final product performs reliably in the field while maintaining a stable, repeatable manufacturing process.

• Baseline Parameters: The standard functional wall thickness for most silicone covers ranges from 1.5mm to 3.0mm, though specialized applications can push these boundaries.

• Uniformity is Critical: Maintaining uniform wall thickness (or adhering to a maximum 25% variance with gradual transitions of 40% to 60%) prevents uneven curing, warping, and internal stress.

• Hardness-Thickness Ratio: Shore hardness dictates structural integrity; softer silicones (e.g., 20-30 Shore A) require thicker walls to maintain shape and prevent sagging, while harder silicones (50+ Shore A) allow for thinner profiles but risk tearing during demolding if corners lack generous radii.

• Avoid Overkill: Specifying walls exceeding 5.0mm often introduces unnecessary material costs, extended cycle times, and curing issues (sink marks) without providing proportional increases in impact protection.

• Stretch and Fit Tolerances: Wall thickness directly dictates the interference fit (stretch ratio) required for a silicone protector to securely wrap around a device without slipping.

Why Wall Thickness is the Defining Metric for a Silicone Protective Cover

A successful thickness specification hinges on dimensional stability. It optimizes curing cycle times and ensures ease of demolding. It also eliminates the need for tooling modifications post-T1. When a silicone protector meets these criteria, production scales smoothly without unexpected bottlenecks. Engineers often underestimate how a fraction of a millimeter alters the flow of uncured silicone inside a heated steel mold. If the cavity is too narrow, the material cures before filling the extremities. If it is too wide, the outer layers cure while the core remains soft, leading to dimensional instability upon ejection.

Thickness directly correlates to material volume formulas. You convert cubic millimeters or inches to material weight in grams to determine raw material requirements. Small changes in wall thickness scale exponentially during high-volume production. Adding just 0.5mm to a design can drastically increase material consumption and extend curing times. This negatively impacts production efficiency. For a production run of 100,000 units, a seemingly minor increase in wall thickness translates to hundreds of kilograms of extra raw material and hundreds of hours of added press time.

Wall thickness also dictates physical performance. It defines shock absorption capabilities and overall tear strength. Tactile feedback for molded buttons relies entirely on precise thickness control. Too thick, and the buttons become unresponsive, requiring excessive actuation force. Too thin, and they rupture under repeated use. The geometry of the wall must distribute kinetic energy away from sensitive internal components. A well-engineered wall acts as a mechanical damper, converting impact energy into slight material deformation that recovers instantly.

Furthermore, the thickness determines the thermal mass of the part during the molding cycle. Silicone rubber is an excellent thermal insulator. When you design a part with thick walls, heat from the mold cavity takes longer to penetrate to the center of the material cross-section. This forces the molding technician to extend the cycle time to ensure a complete cure. Extended cycle times reduce the overall output of the molding press, directly impacting the manufacturing schedule. Conversely, walls that are too thin may cure prematurely as the material flows through the mold, creating knit lines or flow marks where two fronts of partially cured silicone meet.

To calculate the exact material weight based on thickness, engineers use specific gravity. Most standard silicone rubbers have a specific gravity around 1.1 to 1.2 g/cm³. By extracting the volume from the CAD software and multiplying it by the specific gravity, you get the exact part weight. This calculation is highly sensitive to wall thickness variations. A uniform 2.0mm wall across a handheld device cover might yield a 45-gram part. Increasing that wall to 3.0mm to "add more protection" doesn't just increase the weight to 67.5 grams; it changes the entire shrinkage dynamic of the part as it cools from the 170°C molding temperature down to room temperature.

Standard Engineering Guidelines for Silicone Molding Thickness

Establishing proper thresholds prevents common molding defects. The absolute minimum thickness is typically 0.5mm for Liquid Silicone Rubber (LSR). High Consistency Rubber (HCR) generally requires a minimum of 1.0mm. These minimums prevent short shots and air entrapment during the molding process. The maximum sensible limit usually caps at 5.0mm. Going beyond this risks internal voids and sink marks. Overkill thickness degrades physical properties due to uneven heat transfer during curing.

Uniformity remains a strict rule in silicone curing physics. Thinner walls should ideally be no less than 40 to 60 percent of the thickness of adjacent thicker walls. This ratio prevents differential shrinkage. Abrupt changes in thickness cause the material to cool and cure at different rates. This leads to severe warping and internal stress concentrations. When a thick section adjoins a thin section without a proper transition, the thick section continues to shrink after the thin section has solidified. This pulls the thin section out of alignment, causing the final part to bow or twist.

Wall thickness directly affects the elasticity of the part. You must calculate the optimal interference fit based on both thickness and durometer. Typically, the internal dimensions should be 1.5% to 3% smaller than the master hardware blank. This ensures the cover stretches securely over the device without slipping or tearing. If the wall is too thick, the silicone loses its ability to stretch easily over the hardware during assembly. The assembly line workers will struggle to install the covers, leading to ergonomic injuries and slowed production rates.

Draft angles and radii interact closely with wall thickness. You need a minimum draft angle of 1 degree for clean ejection. Internal and external radii must be generous enough to prevent tearing when the part is pulled from the mold core. Sharp corners in thin-walled sections create high-stress points that fail during demolding. When the molding press opens, the part often sticks to the core side of the tool. The operator or robotic arm must physically stretch the silicone over the steel core to remove it. If the walls are thin and the corners are sharp, the tear strength of the silicone is easily exceeded, resulting in a scrapped part.

To manage these variables, engineers utilize specific design rules for transitions. A chamfer or a large radius should always bridge the gap between a 1.5mm wall and a 3.0mm wall. The length of this transition should be at least three times the difference in thickness. For example, transitioning from 1.5mm to 3.0mm (a 1.5mm difference) requires a transition zone of at least 4.5mm in length. This gradual slope allows the silicone to flow smoothly during injection and distributes the shrinkage stresses evenly during cooling.

Application-Specific Thickness Frameworks

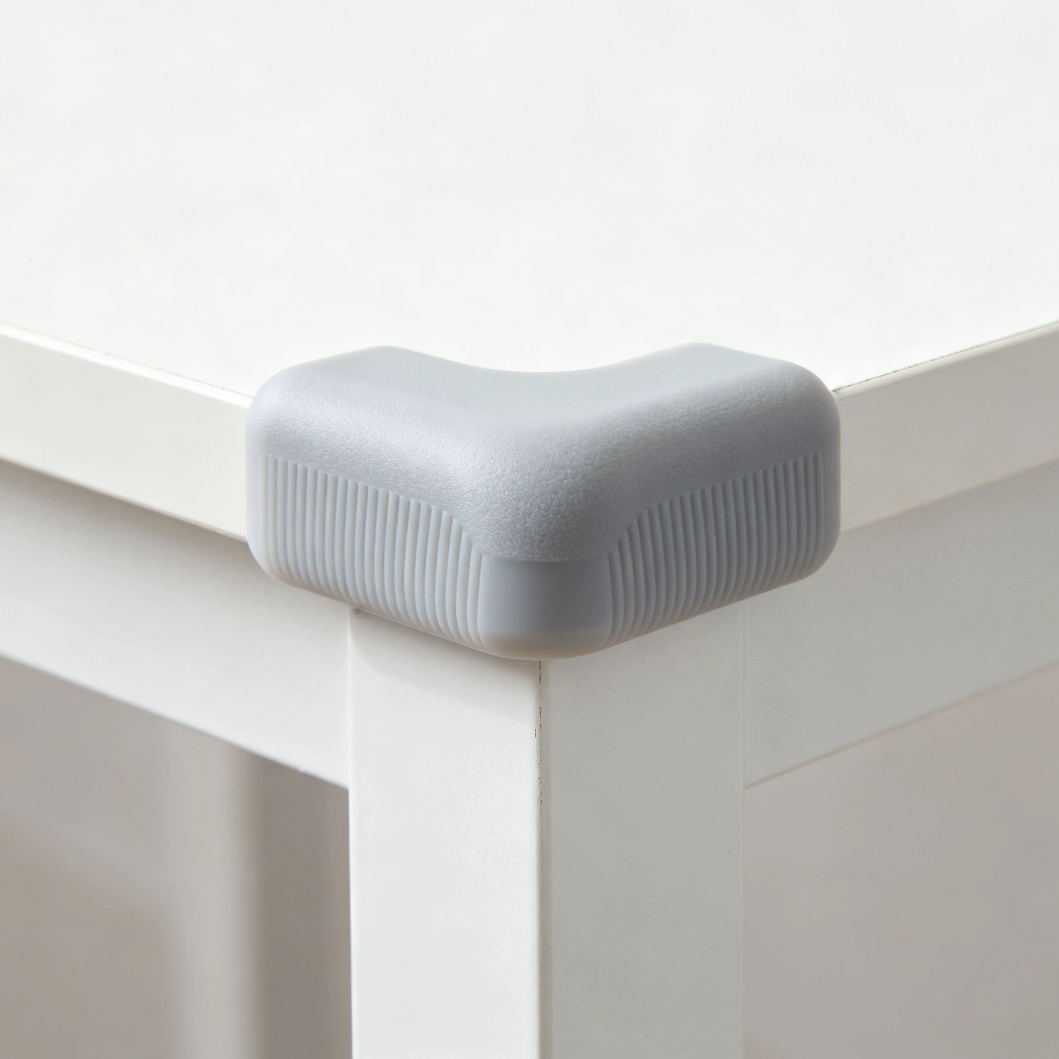

Designing an Anti Collision Silicone Protector

Designing an anti collision silicone protector requires assessing trade-offs. You must choose between solid thick walls and thinner walls reinforced with internal ribbing. Ribbing minimizes material volume while maximizing structural stiffness. This approach provides excellent impact resistance without adding unnecessary bulk to the device. Solid walls exceeding 4.0mm become heavy and difficult to mold consistently. Internal ribs, typically designed at 50% to 70% of the main wall thickness, create a crumple zone that absorbs drop impacts effectively.

Focus on specific structural nodes. High-impact zones require thickness ranges between 3.0mm and 5.0mm. Utilize hollow bumper corners or air-pocket chambers in these areas. These features absorb kinetic energy efficiently. They deform upon impact, protecting the internal hardware while keeping the overall material weight low. When designing air pockets, ensure the outer wall is thick enough to resist puncture (usually around 2.0mm), while the internal void provides the necessary travel distance for deceleration during a drop event.

The geometry of the ribs also matters. A straight rib provides linear resistance, while a honeycomb or cross-hatched rib pattern distributes impact forces across a wider surface area. When specifying an anti-collision design for industrial scanners or ruggedized tablets, the corners experience the highest G-forces during a drop. By increasing the local thickness at the corners to 4.5mm and tapering down to 2.0mm along the flat sides, you optimize the protection-to-weight ratio. This targeted thickness strategy ensures the device survives harsh environments without feeling like a brick in the user's hand.

Specifying Charging Port Silicone Protection

When engineering charging port silicone protection, analyze the need for flexibility. These parts endure repeated insertion and removal cycles. They must also maintain strict dust and water sealing capabilities, often meeting IP67 or IP68 ratings. The design must accommodate constant movement without losing its hermetic seal. If the tether connecting the port cover to the main body is too thick, it will exert a constant pulling force on the plug, eventually causing it to pop out of the port.

Structural nodes here demand precision. You need ultra-thin living hinges ranging from 0.5mm to 1.0mm. Pair these hinges with thicker, rigid plug heads measuring 2.0mm to 3.0mm. This combination ensures tear resistance while maintaining a tight seal. Keep hinge length-to-thickness ratios optimized to maximize part longevity under stress. A hinge that is 0.8mm thick should ideally be at least 4.0mm long to distribute the bending stress over a larger area. If the hinge is too short, the localized strain will exceed the elongation limit of the silicone, leading to a tear after only a few hundred cycles.

The sealing ribs on the plug head also require careful thickness management. These micro-ribs, usually 0.3mm to 0.5mm thick, compress against the inner walls of the hardware port to create the waterproof barrier. If these ribs are designed too thick, the user will not be able to push the plug into the port. If they are too thin, they will shear off during insertion or fail to provide adequate compression for an IP68 rating. The durometer of the silicone plays a massive role here; a 60 Shore A silicone requires thinner sealing ribs than a 30 Shore A silicone to achieve the same insertion force.

Engineering Electronic Component Silicone Protection

Evaluating electronic component silicone protection involves thermal management. Silicone acts as a thermal insulator. You must also consider dielectric strength and tight spatial constraints within hardware assemblies. The material must protect delicate PCBs or sensors without causing the system to overheat during operation. In enclosed electronic housings, trapped heat degrades battery life and causes processors to throttle. Therefore, the silicone barrier must be as thin as possible while still providing the necessary dielectric isolation.

Thin walls are critical in these applications. Thicknesses of 1.0mm to 1.5mm are often required to prevent overheating. At this thickness, the silicone acts more as a thermal bridge than an insulator. It maintains a conformal fit and provides necessary electrical isolation without trapping excessive heat around sensitive components. When potting or encapsulating sensors, the flow characteristics of the silicone dictate the minimum thickness. The material must flow around microscopic solder joints and surface-mount components without leaving air voids. Voids in the silicone layer can lead to corona discharge or moisture ingress, destroying the electronics.

For high-voltage applications, the dielectric strength of the silicone dictates the absolute minimum wall thickness. Most standard silicones offer a dielectric strength of around 20 kV/mm. If the component operates at 10,000 volts, a minimum wall thickness of 0.5mm is theoretically required, but engineers will specify 1.0mm to 1.5mm to provide a safety factor against material impurities or slight molding variations. Balancing this electrical requirement with the thermal dissipation needs is the core challenge in electronic silicone design.

Balancing Wall Thickness with Material Properties (Shore Hardness)

There is a direct inverse relationship between durometer and required thickness. You must map these conceptual trade-offs early in the design phase. The physical properties of the raw silicone dictate how thick or thin your walls can safely be. Ignoring this relationship leads to parts that either fail to protect or fail to manufacture. A design that works perfectly with a 30 Shore A material will likely fail during assembly if molded in a 70 Shore A material without adjusting the wall thickness and interference fit.

Low durometer materials, ranging from 20 to 40 Shore A, are highly flexible. This flexibility requires thicker walls. Without adequate thickness, a soft silicone protector will sag. It may stretch out of shape over time or slip off the device entirely. Thicker walls provide the necessary structural integrity for softer rubbers. For example, a 30 Shore A cover designed with a 1.0mm wall will feel flimsy and will likely peel away from the edges of the device during normal handling. Increasing the wall to 2.5mm gives the soft material enough cross-sectional area to maintain its molded shape and grip the hardware securely.

High durometer materials, ranging from 50 to 70 Shore A, are much more rigid. This rigidity allows for thinner walls. However, it requires careful tolerance management. Rigid silicone does not stretch easily. If the walls are too thin or tolerances too tight, the part will require excessive assembly force. It also risks tearing at stress concentrators during demolding. A 60 Shore A cover with a 3.0mm wall will be incredibly stiff, making it nearly impossible to stretch over a device without mechanical assistance. By reducing the wall to 1.5mm, you maintain the impact resistance of the harder material while restoring enough flexibility for manual assembly.

The tear strength of the material also fluctuates with durometer and thickness. High-tear-strength silicones (often formulated with specific silica fillers) can tolerate thinner walls and sharper internal radii. Standard commercial-grade silicones require thicker walls and larger radii to survive the demolding process. When specifying the material, always review the manufacturer's data sheet for tear strength (measured in kN/m or ppi). If the tear strength is low, you must compensate by increasing the wall thickness around undercuts and ejection points.

Implementation Risks and Mitigation Strategies

Molding silicone involves inherent risks. Understanding these risks allows you to implement effective mitigation strategies during the CAD phase. Waiting until the first tool trial (T1) to address thickness issues guarantees schedule delays and budget overruns. The steel mold is already cut; adding material to the part means removing steel from the mold, which is possible but expensive. Removing material from the part means welding steel back into the mold, which compromises tool integrity and leaves visible witness marks on the final product.

1. Risk 1: Sink Marks and Voids. Localized thick sections cure slower than outer layers. This leads to shrinkage cavities. Mitigate this by coring out thick sections. Utilize ribbed designs and optimize the mold temperature to ensure even curing. If a 5.0mm thick bumper is required, hollow it out from the back side, leaving a 2.0mm outer wall supported by 1.5mm internal ribs. This maintains the outer profile while eliminating the thermal mass that causes sink marks.

2. Risk 2: Short Shots and Tear-Outs. This occurs when walls are too thin for the material's viscosity. It also happens with inadequate tear strength during mold ejection. Mitigate this by increasing gate sizes. Switch to LSR for better flow, or increase local thickness at ejection pin locations. If a 0.5mm wall is failing to fill, run a mold flow simulation to identify the pressure drop. You may need to add a secondary injection gate or increase the wall thickness to 0.8mm to allow the material to reach the end of the cavity before cross-linking begins.

3. Risk 3: Warpage and Dimensional Instability. Abrupt transitions between thick and thin walls cause differential shrinkage. Mitigate this by implementing gradual chamfers. Use generous radii of at least 0.5mm at all thickness transition points. Ensure the cooling layout within the mold tool is balanced. If one side of the mold runs hotter than the other, the silicone will cure unevenly, causing the part to warp immediately upon ejection.

4. Risk 4: Demolding Failures and Reduced Tool Longevity. Deep ribs or thin walls stick to the mold core. This requires excessive force to eject, leading to part tearing. Mitigate this by integrating appropriate mold release agents. Apply vapor-honed or Teflon-coated tool finishes and optimize ejector pin placement. Design the tool with air-poppet valves that introduce compressed air between the steel core and the silicone part, breaking the vacuum seal and allowing the part to slide off without stretching the thin walls beyond their yield point.

Another significant risk involves the parting line placement. The parting line is where the two halves of the mold meet. If the parting line intersects a thin wall section, the risk of flash (excess material seeping between the mold plates) increases dramatically. Flash on a 1.0mm wall is difficult to trim without cutting into the part itself. Always try to place parting lines on the thickest, most robust sections of the design, or along edges where secondary trimming operations will not compromise the structural integrity of the cover.

Conclusion

The ideal wall thickness is never a single, universal number. It is a calculated balance between specific application requirements, material durometer, and molding constraints. You must weigh the need for impact absorption against thermal management and manufacturing feasibility. Precision in these calculations ensures a durable, functional, and manufacturable product that scales efficiently from prototype to mass production.

1. Verify uniformity across all CAD surfaces and apply gradual transitions between varying thickness zones.

2. Check minimum thickness requirements for living hinges, sealing ribs, and delicate features against the chosen material's tear strength.

3. Core out heavy sections exceeding 4.0mm to prevent sink marks and reduce extended curing cycle times.

4. Validate the interference fit calculations against the specific Shore A hardness to ensure proper assembly ergonomics.

5. Prototype the design using 3D printed molds or soft tooling to test physical properties before cutting hardened steel production molds.

FAQ

Q: What is the minimum wall thickness for a molded silicone part?

A: The absolute minimum is typically 0.5mm for Liquid Silicone Rubber (LSR) and 1.0mm for High Consistency Rubber (HCR). Going below these thresholds drastically increases the risk of short shots and air entrapment during the molding process.

Q: How does wall thickness affect the curing time of a silicone protective cover?

A: Thicker walls require significantly more time for heat to penetrate and cure the material completely. Sections exceeding 5.0mm often suffer from uneven curing, which can lead to internal voids, sink marks, and extended cycle times.

Q: Can wall thickness vary across a single silicone protector?

A: Yes, but transitions must be gradual. Thinner walls should be no less than 40% to 60% of the thickness of adjacent thicker walls. Abrupt changes cause differential shrinkage, leading to severe warpage and internal stress.

Q: What is the best Shore A hardness for a 2mm thick silicone cover?

A: A mid-range durometer of 40 to 50 Shore A typically works best for a 2mm wall. It provides enough rigidity to maintain its shape and grip the device, while remaining flexible enough for easy installation and demolding.

Q: How do I prevent sink marks in thick sections of molded silicone?

A: Prevent sink marks by coring out excessively thick sections and replacing them with internal ribbing. This maintains structural integrity and impact resistance while ensuring uniform material thickness for even curing.

Q: Does a thicker silicone wall provide better thermal insulation for electronic components?

A: Yes, silicone is a natural insulator. Thicker walls trap more heat. If thermal dissipation is required for electronic components, walls should be kept thin (1.0mm - 1.5mm) to act as a thermal bridge rather than an insulator.

Q: Does a thicker wall improve the longevity of a silicone protector under repeated use?

A: Not necessarily. While thicker walls resist punctures better, they reduce flexibility. In areas requiring movement, like living hinges, excessive thickness causes fatigue and premature tearing. Proper design and uniform transitions matter more.
