When buyers search for Silicone Gasket performance, the first question is usually simple: “Will it survive my operating temperature without leaking?” Temperature resistance is the fastest way to separate a reliable seal from a costly failure. A Silicone Gasket is widely used because it stays flexible across extreme heat and cold, while many rubber gaskets lose elasticity, harden, crack, or permanently deform when pushed beyond their comfort zone. But “rubber gasket” is a broad category—some rubbers do fine at moderate heat, and others are engineered for chemical or oil resistance rather than temperature.
This article compares Silicone Gasket options versus common rubber gasket materials with a strong focus on temperature resistance, real-world sealing behavior, and decision-making for ovens, food equipment, packaging, and electronics. You’ll also see tables and scoring frameworks to help you choose the right Silicone Gasket or rubber gasket for your application.
Temperature resistance is not just “the highest number on the datasheet.” For any Silicone Gasket, you care about:
Continuous temperature range: where the Silicone Gasket can run for long periods without losing sealing ability
Short-term peak temperature: brief spikes the Silicone Gasket can tolerate
Low-temperature flexibility: whether the Silicone Gasket stays soft enough to seal when it’s cold
Compression set: whether the Silicone Gasket “takes a set” after being squeezed at heat, losing rebound and sealing force
Aging resistance: how the Silicone Gasket handles ozone, UV, heat cycling, and time
A Silicone Gasket is popular because it typically offers strong high/low temperature flexibility and excellent environmental durability. Many standard rubber gasket types do not cover the same temperature span without tradeoffs.
The table below shows typical operating ranges you’ll often see in real selection work. These are general ranges (exact performance depends on formulation, hardness, thickness, and compression design), but they’re useful for comparison when choosing a Silicone Gasket.
| Material Type | Typical Continuous Range | Typical Short-Term Peak | Cold Flexibility | Key Notes |
|---|---|---|---|---|
| Silicone Gasket | -40°C to 200–230°C | 230°C+ (brief) | Excellent | Strong for heat/cold cycling, good aging resistance |
| NBR rubber gasket (nitrile) | -30°C to 100–120°C | 130°C | Fair | Great for oils/fuels; moderate heat limits |
| EPDM rubber gasket | -40°C to 120–150°C | 150–170°C | Good | Great for steam/water weathering; not for oils |
| Neoprene rubber gasket | -30°C to 100–120°C | 120–130°C | Fair | Balanced general-purpose; moderate heat |
| Natural rubber gasket | -20°C to 80–90°C | 100°C | Good | Excellent elasticity; weak heat/ozone resistance |
| FKM/Viton rubber gasket | -20°C to 200°C | 230°C | Fair | Excellent chemical/heat; higher cost; less cold flexibility |
If your environment is routinely above ~150°C, a Silicone Gasket is often the simplest, most cost-effective way to keep the seal stable—especially when heat is paired with frequent door opening, pressure cycling, or repeated compressions.
A Silicone Gasket typically performs well in high temperature because silicone elastomers maintain polymer stability and flexibility at temperatures that cause many rubbers to harden or degrade. In practical terms, that means:
A Silicone Gasket is less likely to crack after repeated heat cycles
A Silicone Gasket is more likely to keep its shape and rebound after compression
A Silicone Gasket resists common environmental stressors like ozone, UV, and weathering
In applications like ovens, heat sealing, food equipment, and electronics exposed to temperature swings, a Silicone Gasket often stays functional longer than a general rubber gasket.
Most seals fail not because they melt, but because they stop “pushing back.” Compression set is the permanent deformation that reduces sealing force. A Silicone Gasket is frequently chosen because it can retain elasticity over wide temperatures, but it’s still important to match the formulation and hardness to your clamp load.
Practical takeaway:
If your seal is squeezed tightly for long periods at high heat, choose a Silicone Gasket designed for low compression set and the right hardness. If your clamp force is low, choose a Silicone Gasket with enough softness to conform and enough rebound to maintain contact.

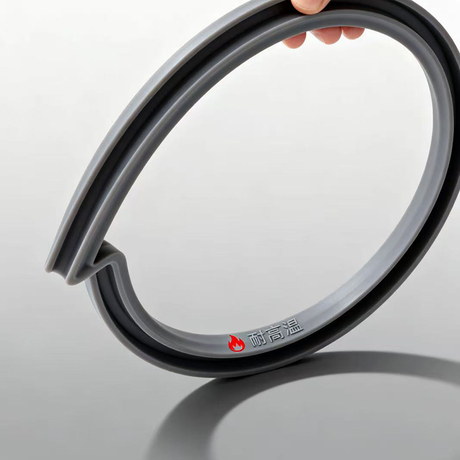

For ovens and hot-air environments, a Silicone Gasket is usually the default choice because continuous heat can quickly age many rubber gasket materials. A Silicone Gasket also supports repeated door cycles—open/close friction plus heat exposure—without hardening as fast.
Best pick: Silicone Gasket
Why: Strong high-temperature stability, wide range, good aging resistance
For food equipment, buyers often prefer food-grade materials. A Silicone Gasket is widely used here because it can be made food-grade, odorless, and stable at elevated temperatures. A Silicone Gasket can also be easier to clean and more resistant to heat-driven degradation.
Best pick: Silicone Gasket (especially food-grade)
Why: Heat stability + compliance-friendly material options
EPDM rubber gasket materials handle steam and water very well, sometimes making EPDM a strong competitor when the temperature is moderate and oils are not present. But when temperatures push higher and you need broader flexibility, a Silicone Gasket often becomes the safer temperature hedge.
Best pick: EPDM rubber gasket (moderate heat), Silicone Gasket (higher range)
Why: EPDM excels in water/steam; Silicone Gasket covers broader extremes
If your environment includes oils/fuels, nitrile (NBR) or FKM/Viton rubber gasket materials may outperform a Silicone Gasket in chemical compatibility. But if you need both very high temperature and chemical resistance, FKM is often selected—though it costs more and can be less flexible in cold.
Best pick: FKM (chemical + heat), or NBR (oil + moderate heat)
Why: Chemical priority can outweigh a Silicone Gasket temperature advantage

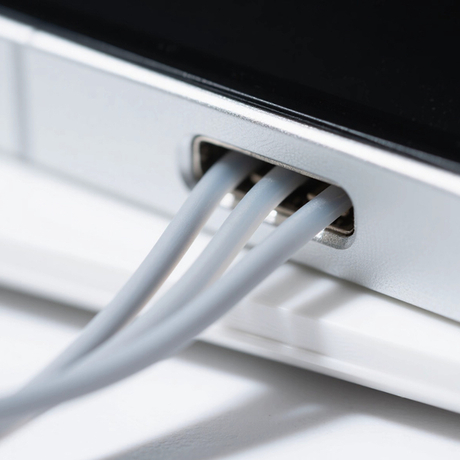

In electronics, sealing often requires both temperature tolerance and environmental sealing against dust/water. A Silicone Gasket is common because it stays flexible in cold climates and resists heat from charging cycles. For ingress protection, material flexibility and long-term rebound matter as much as max temperature.
Best pick: Silicone Gasket
Why: Wide low-temperature to high-temperature performance + durable sealing
Use this quick scoring table (1–5, higher is better) to compare options when temperature is your main concern.
| Criteria | Silicone Gasket | NBR rubber gasket | EPDM rubber gasket | Neoprene rubber gasket | FKM rubber gasket |
|---|---|---|---|---|---|
| Temperature resistance | 5 | 3 | 4 | 3 | 5 |
| Low-temp flexibility | 5 | 3 | 4 | 3 | 2 |
| Aging resistance (ozone/UV) | 5 | 2 | 5 | 3 | 4 |
| Compression set at heat | 4 | 3 | 3 | 3 | 4 |
| Chemical/oil resistance | 3 | 5 | 2 | 3 | 5 |
| Cost efficiency | 4 | 5 | 4 | 4 | 2 |
If your decision is driven mainly by heat cycling, frequent use, and long service life, a Silicone Gasket will usually score highest overall. If oils/fuels dominate, a rubber gasket like NBR or FKM may be the better specialized choice.
Not every Silicone Gasket is identical. Selection depends on the details:
Choose the working range
If you need reliable performance around -40°C, a Silicone Gasket is often superior to many rubber gasket types.
If you need reliable performance near 200–230°C, a Silicone Gasket is often the practical baseline.
Select hardness (Shore A)
A Silicone Gasket that’s too soft may extrude or wear faster; too hard may not conform well. Hardness also impacts compression set and sealing force.
Consider geometry and compression
A thicker Silicone Gasket can handle uneven surfaces, while a thinner Silicone Gasket may need more precise machining and clamp load control.
Confirm environment and compliance
If this is food equipment, select food-grade Silicone Gasket material. If it’s outdoor exposure, prioritize ozone and UV durability—strengths of many Silicone Gasket formulations.
A Silicone Gasket and rubber gasket may fail differently. Recognizing early signs prevents downtime.
Silicone Gasket failure signs
Permanent flattening (compression set)
Tearing from mechanical friction or misalignment
Local deformation from over-compression
Rubber gasket failure signs
Hardening and cracking from heat
Edge crumbling or surface chalking from ozone/UV
Swelling or softening from chemical exposure (material-dependent)
When temperature is extreme or frequently changing, rubber gasket hardening is one of the most common real-world reasons users upgrade to a Silicone Gasket.
Two trends are pushing more buyers toward Silicone Gasket solutions:
Higher operating temperatures and tighter efficiency goals: equipment designers push for better heat retention and stable seals, increasing demand for high-temperature Silicone Gasket materials.
Safety and compliance expectations: in food-related products, more buyers search specifically for food-grade seals, which often leads them to Silicone Gasket options.
This trend aligns with user search behavior: people want fewer replacements, less maintenance, and seals that “just work” across seasons and temperature cycles.
A Silicone Gasket typically offers a wider temperature resistance range, often handling -40°C cold and 200–230°C heat better than many common rubber gasket types like NBR or neoprene. Rubber gasket choices vary: EPDM improves steam/water performance, while FKM can match high heat but may cost more and be less flexible in cold.
If your application regularly exceeds about 150°C, a Silicone Gasket is often the safer choice for long-term sealing. Many rubber gasket materials begin to harden, lose elasticity, or suffer faster aging resistance decline as temperatures rise.
Not always. A Silicone Gasket is excellent for heat/cold and environmental durability, but a rubber gasket like NBR may be better for oils/fuels, and EPDM may be ideal for steam/water. The best choice depends on whether temperature resistance or chemical compatibility is the primary need.
Yes. A Silicone Gasket is often chosen for low-temperature flexibility because it can remain elastic around -40°C, helping maintain a consistent seal in cold climates where some rubber gasket materials stiffen.
To extend Silicone Gasket life: avoid over-compression, choose the correct hardness, keep sealing surfaces clean, and reduce unnecessary friction or misalignment. A properly designed Silicone Gasket will maintain sealing force longer and resist heat-driven deformation better than many general rubber gasket options.
Yes. If the seal may contact food indirectly or be used in food equipment, selecting a food-grade Silicone Gasket helps ensure material safety expectations are met while still providing strong high-temperature performance and easy cleaning.
