In food, beverage, and pharmaceutical processing, zero-defect hygiene is not optional; a single contamination event can trigger catastrophic recalls and facility shutdowns. Facility managers must balance the need for rapid production changeovers with strict regulatory compliance (FDA, 3-A Sanitary Standards) to prevent cross-contamination, allergen transfer, and biofilm buildup. Understanding the physical properties, thermal thresholds, and chemical tolerances of Food Grade Silicone Tubing dictates which sanitization protocols—thermal, chemical, or mechanical—will maximize both operational efficiency and tubing lifespan.
High Thermal Resilience: Silicone's primary advantage is its ability to withstand extreme temperatures, allowing for reliable steam autoclaving (up to 135°C/275°F) and dry heat sterilization (up to 250°C/482°F).
CIP/SIP Compatibility: Clean-in-Place and Sterilize-in-Place systems minimize downtime but require precise flow rates and strict chemical compatibility checks to prevent elastomer degradation.
Surface Integrity is Critical: The naturally smooth inner bore inhibits particle adhesion and reduces fluid friction, but abrasive cleaning or incompatible harsh chemicals will cause micro-abrasions where bacteria can harbor.
System-Wide Consistency: Every inline component, from the main transfer lines down to every food grade silicone seal ring, must share identical sanitization tolerances to ensure a fully sterile loop.
The operational superiority of silicone in sanitary environments stems directly from its unique surface morphology. The material features a non-porous, exceptionally smooth inner bore that significantly reduces fluid friction. This structural characteristic prevents viscous ingredients, particulates, and active pharmaceutical ingredients from sticking to the tube walls during transfer phases. Ensuring a seamless, residue-free flow of products directly protects product integrity while simultaneously removing the microscopic harborage points where microbial colonies typically initiate biofilm formation. When organic matter remains trapped in micro-fissures, subsequent sanitization cycles often fail to penetrate the protective layers of bacteria. Silicone mitigates this risk mechanically through its surface finish.
The curing process dictates the ultimate purity of the elastomer. Platinum-cured silicone offers distinct advantages over peroxide-cured alternatives. The platinum curing mechanism yields lower extractables, eliminates volatile byproducts, and provides a smoother surface finish. This prevents flavor scalping and protects the delicate flavor profiles of sensitive beverages and liquid foods. Plant operators rely on this purity to maintain batch-to-batch consistency without the risk of chemical leaching.
Curing Method | Surface Smoothness | Extractables Profile | Primary Application |
|---|---|---|---|
Platinum-Cured | Exceptionally smooth, low friction | Extremely low, no volatile byproducts | High-purity food, beverage, pharma |
Peroxide-Cured | Moderate smoothness | Higher potential for leaching | General industrial, non-critical fluid transfer |
Selecting materials for high-purity fluid transfer requires strict adherence to established regulatory baselines. For food, beverage, and pharmaceutical contact materials, the primary compliance benchmarks include FDA 21 CFR 177.2600, USP Class VI, and NSF-51 certifications. FDA 21 CFR 177.2600 specifically governs rubber articles intended for repeated use, dictating acceptable extraction limits in aqueous and fatty foods. USP Class VI represents the most stringent testing protocol for biocompatibility, ensuring no toxicological reactions occur upon contact. NSF-51 certifies materials specifically for food equipment applications.
Deploying certified materials across processing lines streamlines the development and execution of HACCP (Hazard Analysis Critical Control Point) plans. When auditors evaluate a facility, documented proof of compliance for all contact surfaces accelerates the inspection process. Utilizing standardized, certified elastomers across the plant floor ensures audit readiness and eliminates the variable risks associated with unverified legacy materials.
Effective sanitization cannot occur on a soiled surface; therefore, rigorous cleaning must precede any sterilization effort. Clean-in-Place (CIP) systems automate this process without requiring operators to dismantle the processing line. A standard CIP cycle involves a highly controlled sequence tailored to the product previously run through the system.
Pre-rinse: Flushes gross soils and loose particulates using ambient or warm water.
Caustic wash: Circulates alkaline detergents at elevated temperatures to break down fats and proteins.
Intermediate rinse: Flushes out the caustic solution and suspended soils.
Acid wash: Neutralizes alkaline residues and removes mineral deposits or scale.
Final rinse: Utilizes high-purity water to ensure all chemical residues are completely removed.
Mechanical scrubbing inside a food grade silicone tube relies entirely on fluid dynamics. Achieving turbulent flow is mandatory. Plant engineers must configure pumps to maintain a Reynolds number greater than 4,000, ensuring the cleaning solutions scour the inner walls rather than simply gliding over them in a laminar fashion. Insufficient flow velocity leaves residual organic matter intact, rendering subsequent chemical or thermal sanitization completely ineffective.
Despite the efficiency of CIP, certain components necessitate Clean-Out-of-Place (COP) protocols. Complex geometries, multi-port manifolds, dead legs, and manufacturing lines producing smaller consumer-facing items require dismantling for thorough cleaning. Products like a silicone straw or a specialized baby feeding silicone straw feature restricted internal diameters that standard CIP flow rates cannot effectively penetrate without causing excessive backpressure.
Manual scrubbing demands strict adherence to best practices to preserve the elastomer's surface integrity. Operators must use soft-bristled brushes specifically sized for the internal diameter of the tubing or component. Utilizing stiff wire brushes or highly abrasive pads will score the inner wall, creating permanent micro-abrasions. Cleaning agents should consist of neutral detergents formulated for elastomers. After manual scrubbing, boiling water deep-cleaning serves as an accessible, high-reliability method for smaller-scale components. Submerging these parts in rolling boiling water for 10 to 15 minutes effectively neutralizes lingering pathogens and removes residual detergent films.
Thermal sterilization exploits silicone's exceptional heat resistance to achieve complete microbial destruction. Steam autoclaving stands as one of the most effective methods for offline sterilization. For optimal results, operators subject the tubing to saturated steam at 135°C (275°F) under 3.5 bars of pressure for up to 1.5 hours. This combination of heat, moisture, and pressure penetrates bacterial spores and ensures absolute sterility. Alternatively, dry heat sterilization utilizes clean, hot air systems. Silicone safely tolerates dry heat up to 250°C (482°F), making it suitable for depyrogenation processes where moisture introduces unacceptable risks.
While thermal methods guarantee high efficacy, operators must evaluate the physical trade-offs. Repeated thermal cycling accelerates polymer degradation. Over time, the constant expansion and contraction compromise the elastomer's elasticity, leading to compression set at connection points and an overall reduction in operational lifespan. Tracking autoclave cycles is essential for predictive maintenance.
Steam-in-Place (SIP) integrates directly with CIP infrastructure, allowing continuous processing lines to achieve sterility without breaking connections. Following the final CIP rinse, saturated steam is introduced into the closed loop. This method eliminates the contamination risks associated with manual reassembly and drastically reduces changeover times in high-throughput facilities.
Implementing SIP introduces significant mechanical stresses. Facility engineers must manage pressure ratings meticulously. Monitoring steam traps ensures that condensate drains effectively, preventing cool spots where sterilization temperatures drop below critical thresholds. Furthermore, operators must control the cooling phase carefully; rapid temperature drops can create vacuums, leading to tube collapse, while excessive steam pressure can cause blowouts at clamped connections.
Chemical sanitization provides a rapid, energy-efficient alternative to thermal methods. Common sanitizing agents utilized in commercial processing include Peracetic acid (PAA), sodium hypochlorite (bleach), and quaternary ammonium compounds (Quats). PAA is highly favored due to its broad-spectrum efficacy and breakdown into harmless byproducts (acetic acid, oxygen, and water). Bleach offers powerful oxidation but requires careful concentration management to prevent material attack.
The primary trade-off with chemical sanitization involves material compatibility and residue management. While faster and less energy-intensive than heat, aggressive chemicals carry a higher risk of leaching into the elastomer, causing flavor scalping in subsequent production runs, or inducing premature tubing degradation if concentrations exceed manufacturer recommendations. Thorough final flushing with high-purity water is critical to ensure zero chemical residue remains before reintroducing the product.
Sanitization Method | Typical Operating Parameters | Primary Advantages | Operational Risks / Trade-offs |
|---|---|---|---|
Steam Autoclaving | 135°C (275°F) at 3.5 bars for 1.5 hrs | Guaranteed sterility, deep penetration of spores | Requires offline dismantling; repeated cycles reduce elasticity |
Dry Heat Sterilization | Up to 250°C (482°F) | Moisture-free, effective for depyrogenation | High energy cost; accelerates elastomer hardening |
Steam-in-Place (SIP) | 121°C to 135°C inline steam | No dismantling required; rapid turnaround | Risk of tube collapse or blowout; requires precise steam trap monitoring |
Chemical (e.g., PAA) | Ambient to warm temps, specific ppm | Fast, energy-efficient, broad-spectrum | Risk of chemical leaching, flavor scalping, and premature degradation |
The integrity of a sanitary fluid transfer system is often compromised at its connection points. Fittings and joints represent the highest risk areas for bacterial harborage. Barbed fittings, while common in low-pressure applications, create inherent dead zones where the tubing overlaps the barb. These crevices trap particulates and resist both CIP fluid dynamics and chemical penetration. Conversely, smooth Tri-Clamp fittings provide a seamless transition between the hose and the rigid piping, eliminating dead legs and ensuring consistent turbulent flow.
System-wide consistency dictates that every sealing component matches the sanitization tolerances of the primary transfer lines. Every food grade silicone seal ring, gasket, and O-ring must undergo the exact same CIP/SIP protocols. Material mismatches create localized contamination zones. If a low-grade rubber gasket degrades under SIP temperatures while the silicone tubing survives, the resulting particulate shedding and bacterial buildup will contaminate the entire sterile loop.

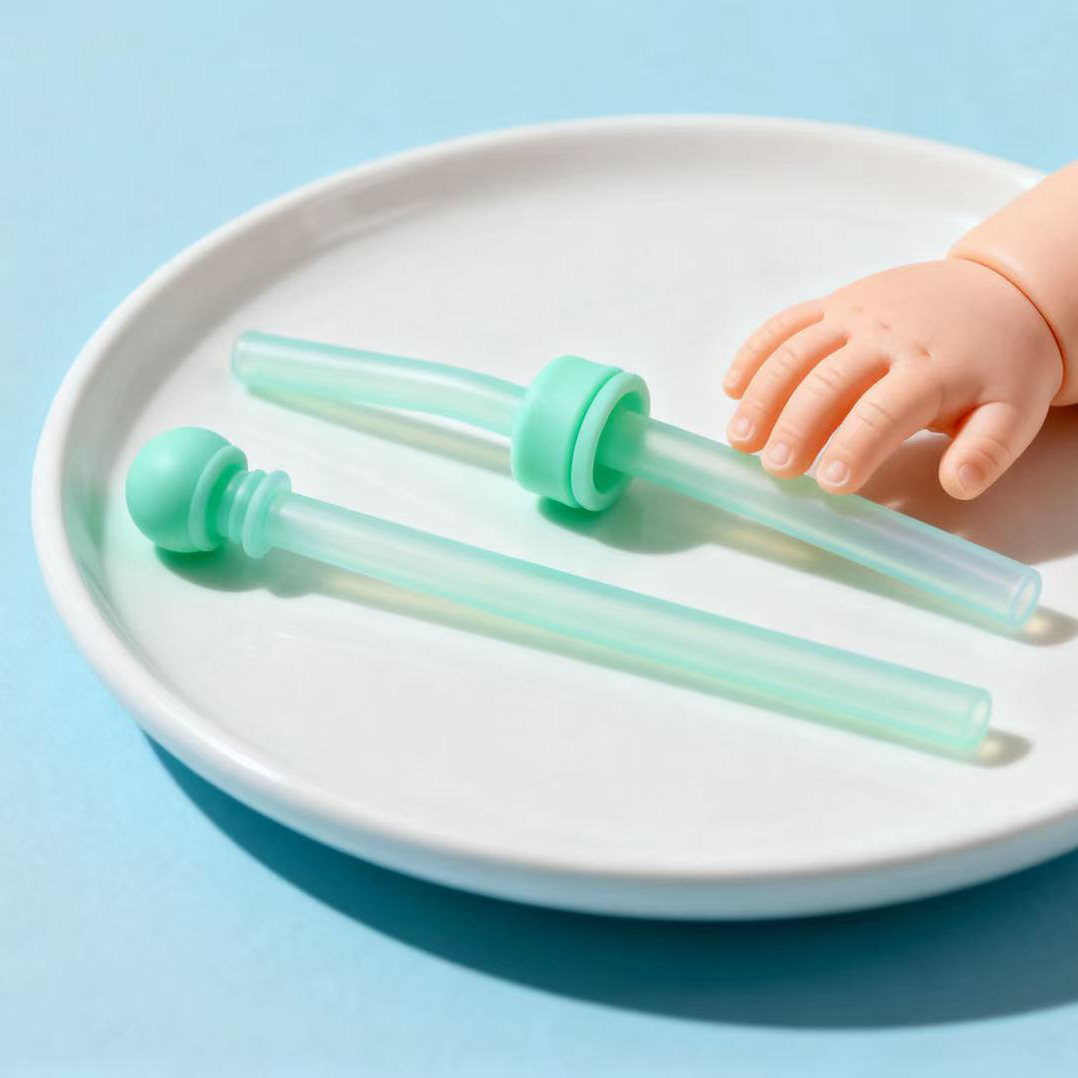

Sanitizing micro-bore tubing or consumer-grade equivalents presents unique fluid dynamic challenges. Restricted diameters inherently increase fluid resistance, making it difficult to achieve the turbulent flow necessary for effective mechanical scrubbing during CIP. The pressure drop across small-diameter lines often results in laminar flow, which fails to dislodge stubborn organic residues.
When flushing restricted diameters, operators must adjust pressure, flow rates, and chemical contact times. Increasing the contact time of sanitizing agents compensates for the lack of mechanical scrubbing force. Specialized pump configurations and dedicated manifold adapters ensure that sanitizing fluids penetrate the entire length of the micro-bore system without exceeding the burst pressure ratings of the tubing.
Proactive maintenance prevents catastrophic failures and contamination events. Silicone provides distinct visual and tactile indicators of degradation long before a complete rupture occurs. Operators conducting daily inspections should look for cloudiness or opacity in normally translucent lines. Discoloration, such as yellowing or browning, indicates chemical attack or excessive thermal stress. Tactile signs include brittleness, a tacky or gummy surface texture, loss of flexibility, and the presence of micro-cracking near connection points.
Relying on visual inspection alone is insufficient for high-risk processing. Facilities must establish a proactive, data-driven replacement schedule. This schedule should be based on tracked run hours, the specific chemicals used, and the total number of thermal sanitization cycles endured. Replacing elastomers based on calculated lifecycle metrics guarantees line integrity and prevents unexpected downtime.
Facility managers constantly navigate the operational trade-off between production uptime and sanitization thoroughness. Aggressive, fast chemical sanitization minimizes downtime but accelerates material wear, increasing consumable costs. Conversely, thermal methods like SIP provide absolute assurance of sterility but require longer heating and cooling phases, directly reducing available production hours.
Selecting the appropriate method depends heavily on the specific food product being processed. High-fat dairy products leave stubborn lipid residues that demand heavy caustic cleaning followed by rigorous thermal sterilization to prevent spoilage organisms. In contrast, high-acid beverages inherently inhibit bacterial growth, allowing facilities to rely on faster, lower-temperature chemical sanitization or simple pasteurization cycles without compromising safety.
Audit current CIP and SIP parameters to ensure flow velocities and temperatures meet the strict requirements for turbulent flow and complete microbial destruction.
Verify all chemical concentrations and contact times against the specific elastomer manufacturer's compatibility charts to prevent premature degradation.
Implement a standardized, cycle-based inspection and replacement protocol for all transfer lines, gaskets, and seals to eliminate reactive maintenance.
Standardize connection hardware across the facility, upgrading from barbed fittings to sanitary Tri-Clamps wherever fluid dynamics dictate a risk of harborage.
A: Yes, boiling water is a highly reliable deep-cleaning method for heat-tolerant elastomers. Submerging the components in rolling boiling water for 10 to 15 minutes effectively neutralizes pathogens and removes lingering detergent films, making it ideal for offline cleaning of smaller parts.
A: Lifespan depends on cycle frequency and duration. While silicone easily withstands 135°C (275°F), repeated expansion and contraction eventually cause compression set and loss of elasticity. Facilities should track cycles and replace tubing based on data-driven schedules rather than waiting for visual failure.
A: Sodium hypochlorite (bleach) can be used, but it requires strict concentration management. High concentrations or prolonged exposure will attack the polymer matrix, causing brittleness and surface tackiness. Thorough final flushing is mandatory to prevent chemical leaching into the product.
A: Standard high-purity silicone handles continuous inline steam temperatures between 121°C and 135°C (250°F to 275°F) during standard SIP cycles. For dry heat sterilization, it can safely tolerate temperatures up to 250°C (482°F) without melting.
A: Small diameters restrict fluid flow, making automated CIP difficult. They require manual cleaning using correctly sized soft-bristled brushes and neutral detergents to prevent internal scoring, followed by a 10-minute submersion in boiling water for complete sterilization.
A: No. Every inline sealing component must share identical sanitization tolerances with the main transfer lines. Applying uniform CIP/SIP protocols ensures a fully sterile loop and prevents localized contamination zones caused by material mismatches.
A: Replacement frequency should be dictated by a proactive schedule based on run hours, chemical exposure, and the number of sterilization cycles. Visual cues like cloudiness, brittleness, or tackiness indicate immediate replacement is necessary to prevent contamination.
